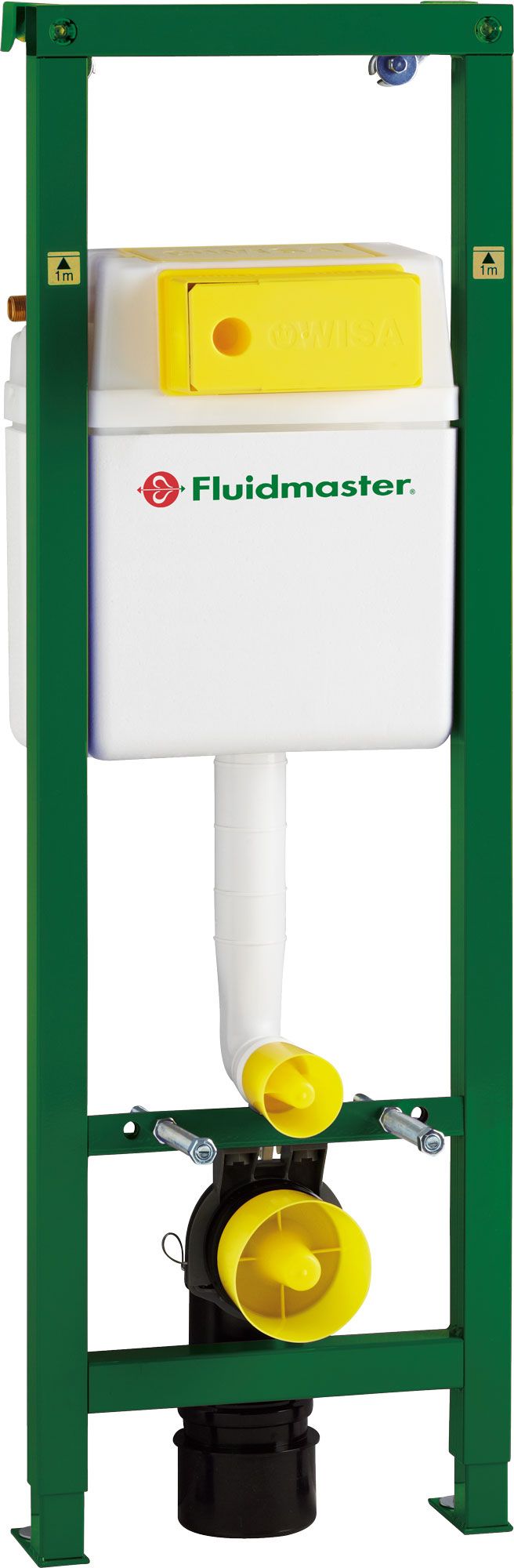

WC Frame TegraFlo 118 cm

TegraFlo combines space-saving design with smart hygiene features, ensuring a luxurious bathroom experience.

Product number: 2041F-0016-30

Installation method
  • Installation in prefabricated walls
  • Pre-wall installation in dry walls
  • Universal installation into solid walls

Properties
  • Self-supporting, green powder coated frame, square profile 40x40 mm
  • 400 kg load tested frame
  • Enables installation of wall hung WC pans with dimension of 180 mm or 230 mm
  • Pre-assembled wall brackets
  • Adjustable supporting feet (0-200 mm)
  • Pre-assembled concealed cistern, front actuation
  • Two different actuation methods – electronic and mechanical
  • Installed factory pre-set dual flush valve, large flush 4 L, small flush 2 L
  • Concealed cistern is fully insulated against condensation
  • Water supply connection possibility on the two positions
  • Maintenance service work is possible without using any tools

Special feature
  • Quiet mechanical fill valve Fluidmaster 747 Series (Noise class 1 ISO 3822)
  • Fill valve flow pressure 0,2-10 bar
  • Depth adjustable drain elbow (+/-20 mm)
  • Corner installation is possible with additional wall bracket kit (has to be ordered separately)
  • Possible to install Frescoblue Hygene + kit (has to be ordered separately)

Product contains
  • Concealed cistern is equipped with pre-installed stop valve – left side
  • Water supply connection G 1/2 with flexible hose
  • PE-HD drain elbow Ø 90/90 mm with seal
  • Eccentric PE-HD adapter Ø 90/110 mm with seal
  • Installation manual
  • Complete installation and fixing material

Dimension of the product
  • Height 1180 mm, width 380 mm, depth 140 mm

Additional information
  • Packaging/Pallet: 1/28 pcs
  • Warranty: more information in General terms and conditions
