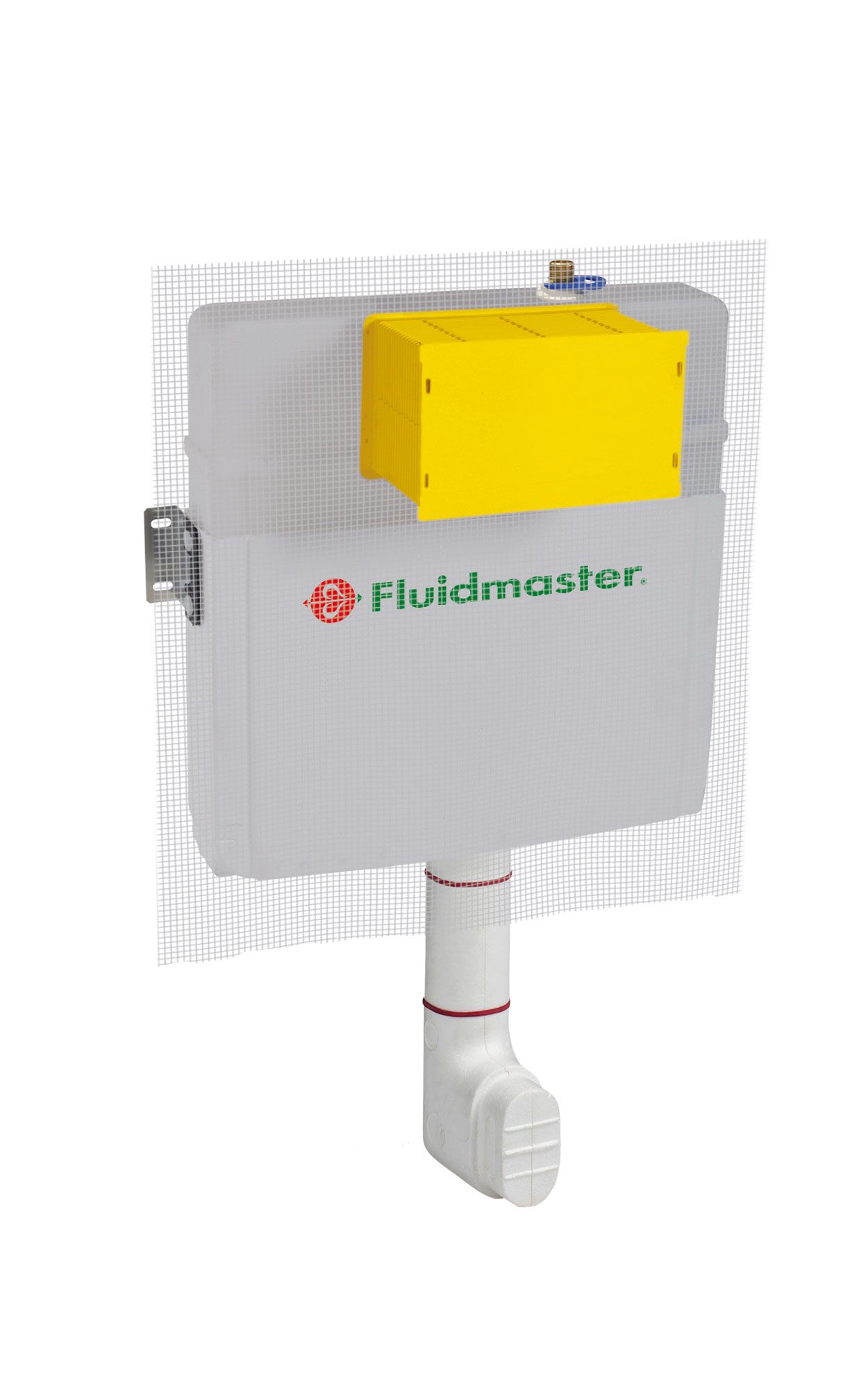

Frameless Cistern PrimaFlo
Product number:
2022N-0020-30
Description
Close menu
Installation method
Installation into solid walls
Pre-wall installation
Properties
Pre-assembled concealed cistern, with front mechanical actuation
Installed factory pre-set dual flush valve, large flush 4 L, small flush 2 L
Concealed cistern is fully insulated against condensation
Water supply connection, top center
Maintenance service work is possible without using any tools
Special feature
Quiet mechanical fill valve Fluidmaster 747 Series (Noise class 1 ISO 3822)
Fill valve flow pressure 0,2-10 bar
Product contains
Concealed cistern is equipped with pre-installed stop valve – top middle
Water supply connection G 1/2 with flexible hose
Flush pipe L=300 mm
Masonry/plaster net
Installation manual
Complete installation and fixing material
Dimension of the product
Depth 85 mm, width 497 mm, height 540 mm
Additional information
Packaging/Pallet: 1/30 pcs
Warranty: more information in General terms and conditions
Downloads
Close menu
Technical drawing 2022N-0020-30
Instructions 2022N-0020-30
